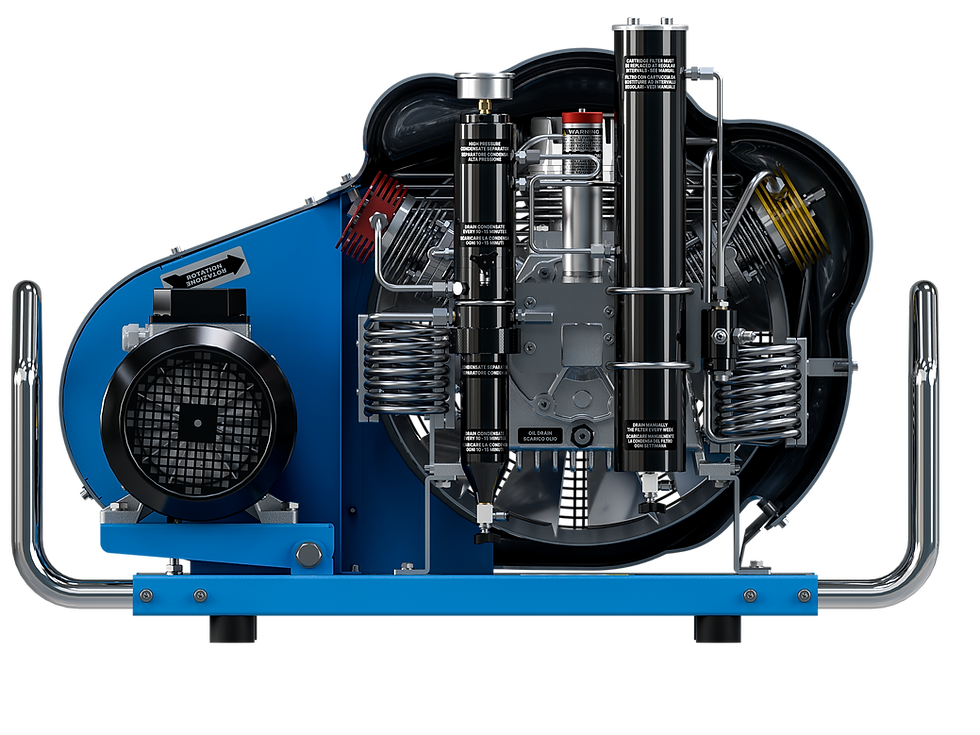

SMART breathing air compressors represent the evolution of the Standard, one of the best known and best-selling models in the world.

3-stage high pressure pumping unit.

Monobloc in aluminum,
Crankshaft in forged steel
Splash lubrication
Forged aluminum connecting rods
Main roller bearings
Roller connecting rod bearings
1st and 2nd stage cylinders in aluminum with hard nicasil coating
2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating
3rd stage cylinder in special treated steel.
Stainless steel intake and exhaust valves
Interstage cooling pipes in stainless steel
Separator after the 2nd and 3rd stage
Safety valves after each stage
Maxifilter filter system

The purity of the air is achieved.

The Maxifilter purification system enables reliable treatment of breathing air according to DIN EN 12021 when using original filter cartridges. Placed after the separator of the 2nd and 3rd compressor stages and before the pressure maintenance valve to create a first fundamental moisture barrier. The filtering capacity with inlet air at 20 ° C and 200 bar is 620m³.

Motor

One of the fundamental parts of the compressor: the motor transfers the motion to the pumping unit through the belt. On this model is available the single-phase or three-phase electric motor from 3 to 5, 5 kW.

Chassis

Essential and compact, this frame is designed to facilitate portability. The tilting motor-holder plate guarantees the constant tension of the V-belt. The protective casing in thermo-formed material conveys the cooling air on the cylinders and on the inter-stage pipes. This guarantees a high compression efficiency.

Standard equipment
2 x Cylinder connections to choose from DIN 232, DIN 300 or INT / YOKE 232 bar
2 x whips 1.2m long
Pressure maintenance valve
Maxifilter filter system
Carrying handles
Frame color Blue RAL 5015
